METI/ECCJ/AOTS Training Program

Indonesia

How to increase energy efficiency?

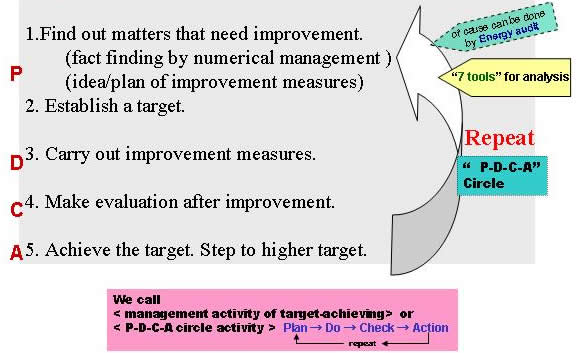

Basic methodology of management
To repeat “P-D-C-A” circle is very effective and important.

Three Steps to Promotion of Energy Conservation

	Measures	Description
Step 1	Enhancement of management, Improvement of operation	To enhance energy management based on the current setup, so as to improve operation (at least measuring instruments may be required)
Step 2	Improvement and additional installation of equipment	To improve or retrofit some facilities with only a small investment, so as to achieve higher energy efficiency as well as to recover waste energy
Step 3	Changes in process, Introduction of high-efficiency equipment	This step is intended for improving or updating process and manufacturing equipment It involves technical development and large-scale investment, but on the other hand produces a substantial

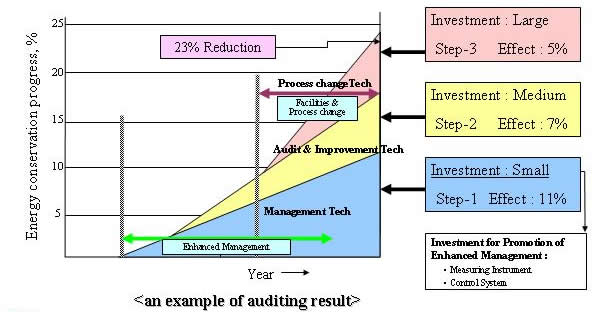

Energy Conservation Measures & Effects
“ 3 Steps for Energy Conservation ”

Energy Conservation Technologies for Energy-Intensive Industries

Industries	Energy conservation measures	Energy- saving equipment
Iron & Steel	Improvement of production processes & operation technologies, Increasing of continuous casting ratio, Improvement of recovery rate of waste heat & converter furnace gas, Hot charge, Direct feed rolling	Continuous hot billet casting equipment, Blast furnace top gas pressure recovery power plants, Sintered ore waste heat recovery equipment, Continuous annealing equipment, Coke dry quenching equipment
Petrochemicals (Ethylene)	Enhancement of waste heat recovery, Rationalization of processes, Reduction of distillation tower reflux ratio	High-performance naphtha cracking equipment, Heating furnace waste heat recovery equipment, Cracking byproduct waste heat recovery equipment, high-efficiency compressors
Cement	NSP conversion, Improvement of material mills/finishing mills, Recovery and reuse of exhaust heat, Combustion control	SN/NSP kilns, Vertical mills, Medium to low temperature waste heat utilization power generation systems
Paper & Pulp	Continuation of production processes, Recovery and reuse of waste heat, More efficient production processes, Increased use of recycled paper, Improvement of operation management	Pre-permeation type continuous cooking equipment, High-performance pulp washing equipment, High-performance sizing press equipment, Falling film type vacuum evaporators
Dye finishing	Thoroughgoing implementation of maintenance and control, Recovery and reuse of hot waste water/heat, Introduction of dyeing machines of lower bath ratio, Improvement of processing conditions	Jet dyeing machines, Washing liquid low adding equipment, Counterflow type washing equipment, Waste liquid heat exchangers
Sheet glass	Sheet glass Reinforcement of heat insulation, Improvement of furnace seal, Improvement of heat storage efficiency, Recovery of waste heat Waste heat boiler equipment	Waste heat boiler equipment
