METI/ECCJ/AOTS Training Program

Indonesia

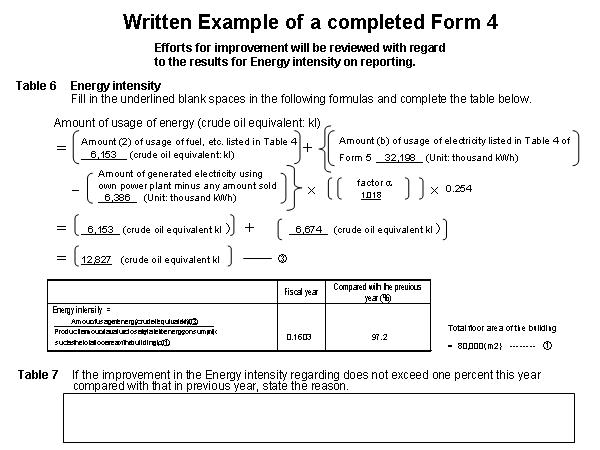

Written Example of a completed Form 4
Efforts for improvement will be reviewed with regard
to the results for Energy intensity on reporting.

Energy conservation procedures

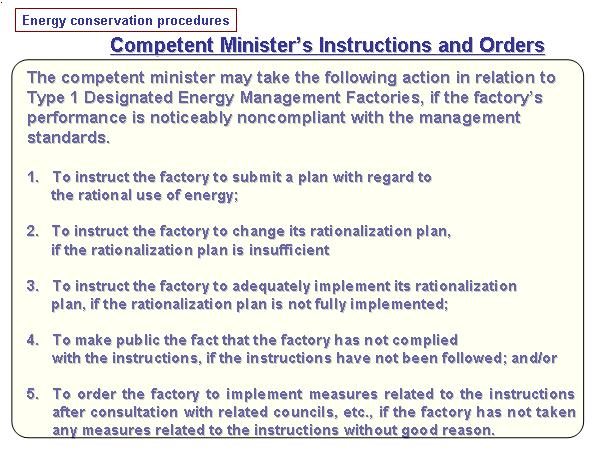

Competent Minister’s Instructions and Orders

Energy conservation procedures

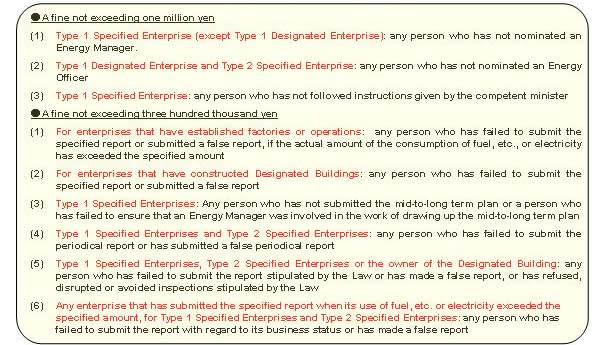

Energy Conservation Law Penal Clauses (Part Related to Buildings)

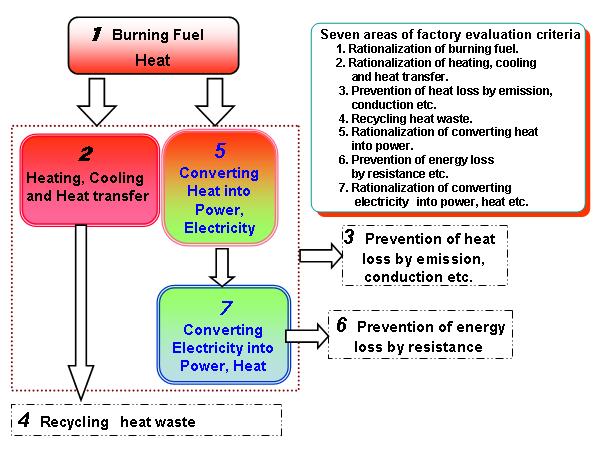

Outline of Evaluation Criteria (Chart)
( e.g : Rationalization of burning fuel )

Object	Management	Measurement & Record	Maintenance & Check Up	Measures for new construction of facility
1.Rationalization of burning fuel	1)1. Manage air ratio According to combustion facilities and fuel type. “Management Standard” 2.Lower air ratio according to appended chart1.(A) for combustion facilities. “Criterion” 3. For multiple facilities, adjust load and manage general heat efficiency. “Management Standard” 4. Fuel management to enhance combustion efficiency.	2) Measurement records of supplied fuel amount, exhaust gas temperature, 02%, etc. “Management Standard”	3) Proceed maintenance and check up of the combustion facility and sustain desirable condition. “Management Standard”	4)1. Adjust fuel amount and air ratio of the combustion apparatus according to load change. 2. Adjust ventilation volume and combustion chamber pressure of the ventilator.
7. Rationalization 　of converting 　Electricity into 　power, heat etc

7/9
