METI / ECCJ / ACE Training Program MTPEC03 (2006.01)

I-2. Transition of Energy Consumption in the Commercial/Residential Sector Trend in Standby Power Consumption
The amount of standby power consumed at households accounts for approximately 10% of the total household power consumption (equivalent to TV power consumption at all households).

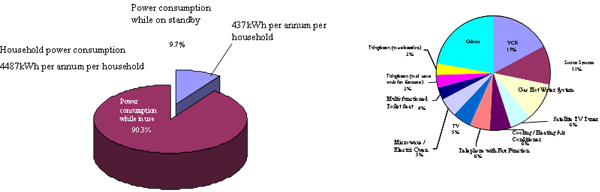

Standby power ratio of the total power consumption in households	Breakdown of annual standby power consumption per household

	Source: FY2002 study on standby power consumption, Energy Conservation Center, Japan
*Standby Power Consumption : Power consumed while electrical appliances are not in use. (Power consumption for the timer function, remote controller receiver, etc.)

I-2. Transition of Energy Consumption in the Commercial/Residential Sector

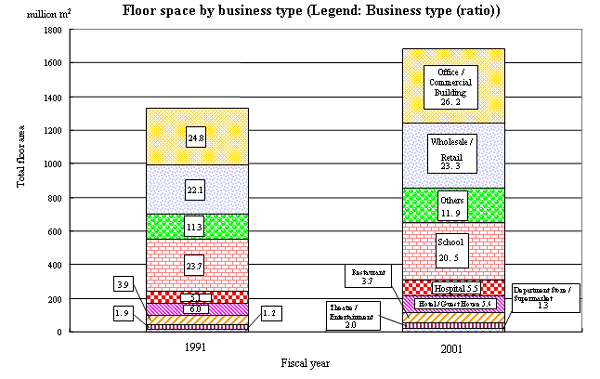

Transition of Floor Space by Industry in the Commercial Sector

The energy consumption in the commercial sector is consistently increasing.This is attributed to a significant increase in total floor area for offices, business buildings, etc.

(Note) The figures in the graph represent each industry's floor area ratio against the industry total.
Source: Energy and Economics Statistics

I-2. Transition of Energy Consumption in the Transportation Sector Transition of Energy Consumption in the Transportation Sector
Energy consumption in the transportation sector surged after oil crisis and has leveled off in recent years. Per-capita energy consumption in the transportation sector is on the increase in all major countries.

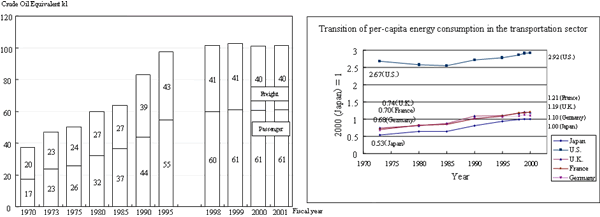

Transition of energy consumption in the transportation sector

Source: General Energy Statistics	Source: Compiled by the Natural Resources and Energy Agency based on energy / economic statistics data

I-2. Transition of Energy Consumption in the Transportation Sector Contributing Factors Increasing Energy Consumption in the Transportation Sector
Passenger vehicles contributed 90% of the total energy consumption in the whole transportation sector increased during FY1991 to 2001. Passenger vehicles have poor unit energy consumption compared to other transportation .

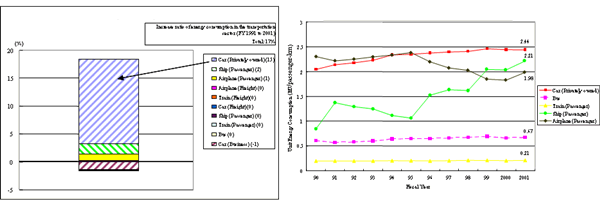

Contributing Factor Increasing Energy Consumption in the Transportation Sector (FY1991 to 2001)	Transition of unit energy consumption by transportation

Source: Compiled by the Natural Resources and Energy Agency based on energy & economic statistics data	Source: Energy and Economic Statistics
