METI / ECCJ / ACE Training Program MTPEC04 (2006.02)

Energy Saving Measures around Dryer

1-1	Reduce exhaust gas loss Maximize circulation at both dry end and wet end
1-2	Recover waste heat of exhaust gas (1) Recover to fresh air, (2) Recover hot water
2	Reduce air intrusion through air holes Repair or replace
3	Reduce fan energy (3 fans) Variable speed control
4	Reduce radiation loss Insulation

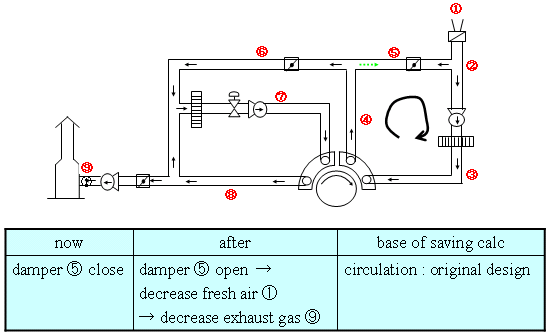

Reduce Exhaust Gas Loss

Maximize Circulation

64/85
