METI / ECCJ / ACE Training Program MTPEC04 (2006.02)

2. Energy Conservation Technology for Buildings

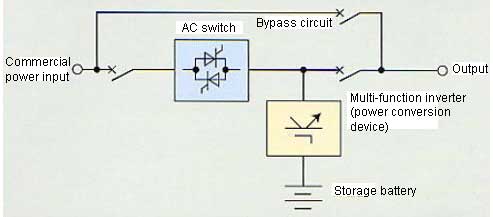

Single Conversion UPS

Efficiency:
Existing A/DD/A	10% loss
Single conversion type	5% loss

2. Energy Conservation Technology for Buildings
Cutting the Power to Canned Drink Vending
Machines at Night and on Weekends

1. Install a timer to each vending machine that incorporates a weekly and 24-hour timer, and cut the power at night and on weekends.

2. The average output for a drinks vending machine is 500W.

3. The yearly power consumption of a vending machine is around 3,000 kwh.

4. 3,000 kwh x 0.4 (rate of reduction)=1,200 kwh

5. The cost of an energy-saving device is a few hundred dollars per vending machine. There is no special installation work required.

36/36
