METI / ECCJ / ACE Training Program MTPEC05 (2006.08) |

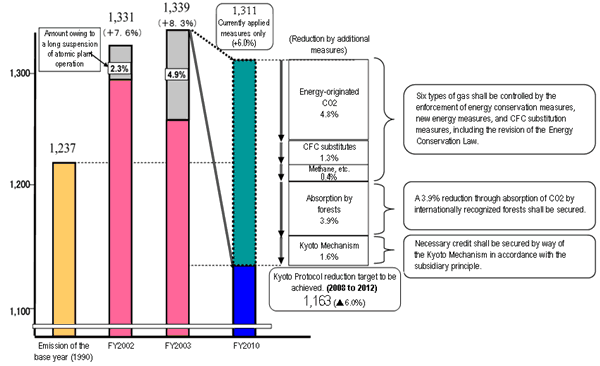

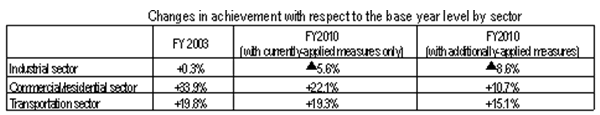

I-1. Overall Status Picture Toward Achieving the 6% Reduction Target of the Kyoto Protocol |
|

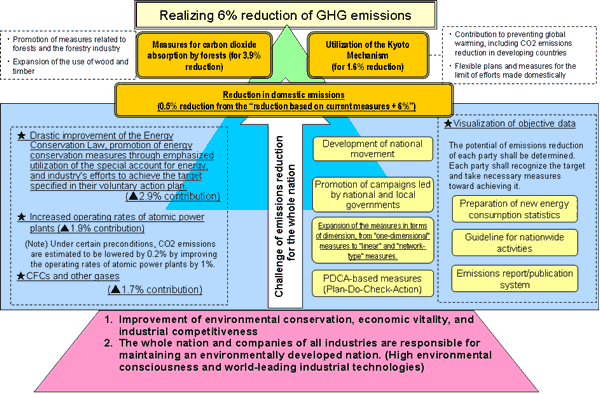

I-1. Overall Status Basic Concept of the Plan to Achieve the Kyoto Protocol Target |
I-2. Transition of
Energy Consumption in the Industrial Sector Transition of Energy Consumption in the Industrial Sector |
|
|
|

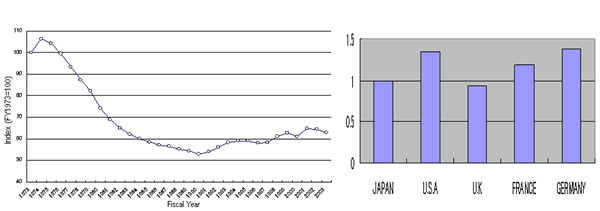

Transition of energy consumption intensity per Index of Industrial Production for the manufacturing industry | Energy Consumption Intensity per GDP in the Industrial Sector by Country |
Source: Energy Balance Tables in Japan, Yearbook of Indices of Industrial
Production (Note 1) The Index of Industrial Production is weighted with value added structure (2000 standard). (Note 2) The Index of Industrial Production is affected by sales values. When a sales price drops, the index may go below the index of production volume. |
Source: Compiled by the Agency for Natural Resources and Energy based on
Handbook of Energy & Economic Statistics in Japan data (Note) Final energy consumption (tons in oil equivalent)/real GDP (1995 value in US$) (both are actual figures for FY2002), indicated in the ratio when the Japanese figure is set at 1. |
I-2. Transition of

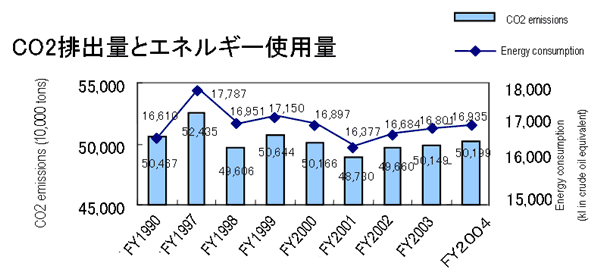

Energy Consumption in the Industrial Sector Energy Consumption Trend under Nippon Keidanren's Voluntary Action Plan on the Environment |
Source: Nippon Keidanren (Japan Business Federation) data |
3/10 Next |
