METI / ECCJ / ACE Training Program MTPEC06 (2007.01)

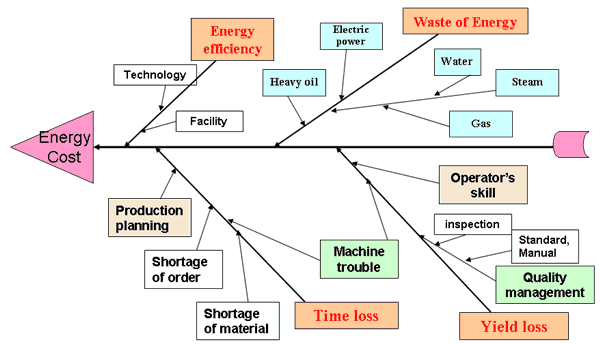

Example:Factor analysis for Energy Cost
< cause and effect diagram > View point of loss-structure

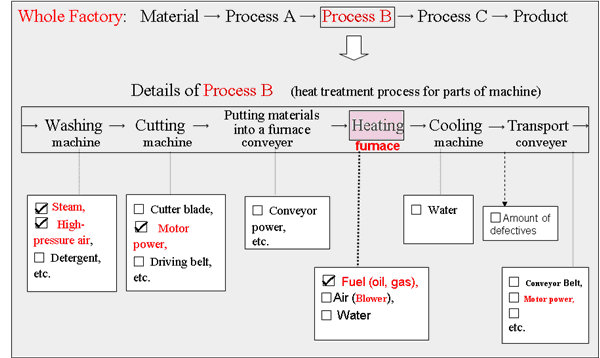

Example in a machine manufacturing factory :
(Segmentation of Manufacturing Process)

< Flow diagram > --- 7 tools

< Check sheet > ---7 tools

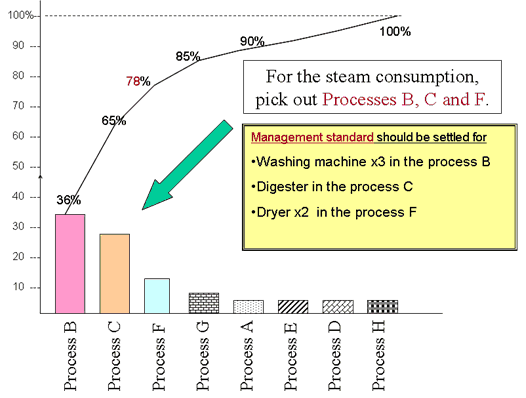

Example : Steam cost in all processes

< Pareto diagram > --- 7tools

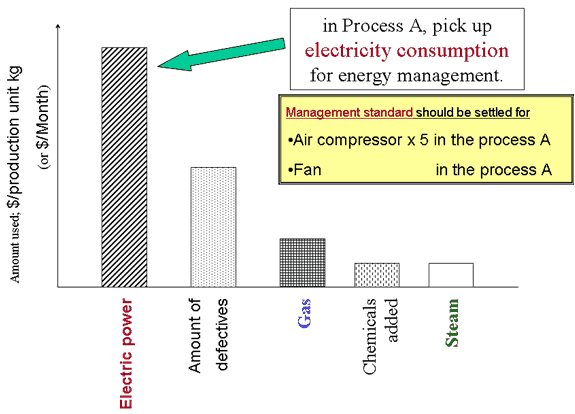

Example : Amount (cost) used in Process A

6/39
