METI / ECCJ / ACE Training Program MTPEC12 (2011.11)

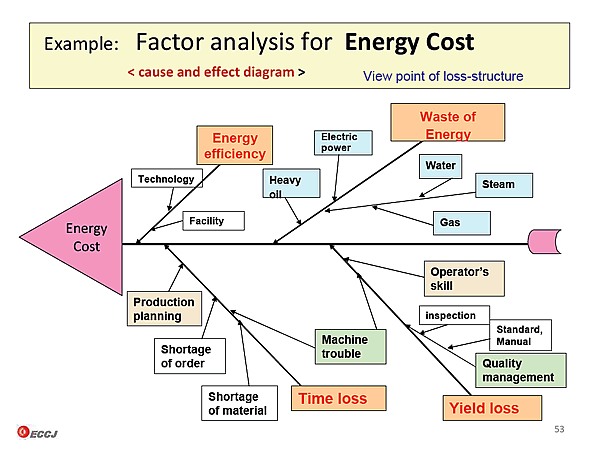

Example: Factor analysis for Energy Cost < cause and effect diagram >

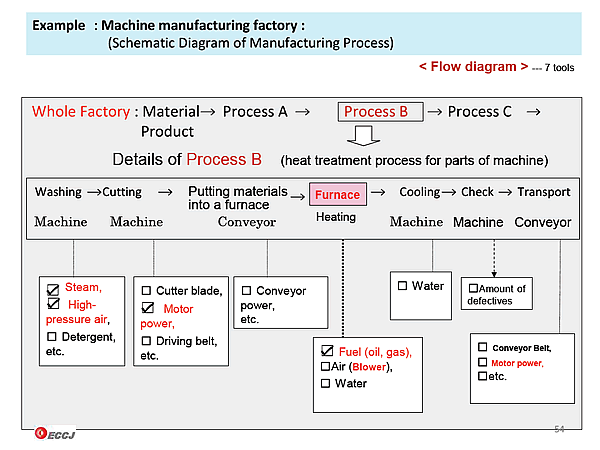

Example : Machine manufacturing factory : (Schematic Diagram of Manufacturing Process)

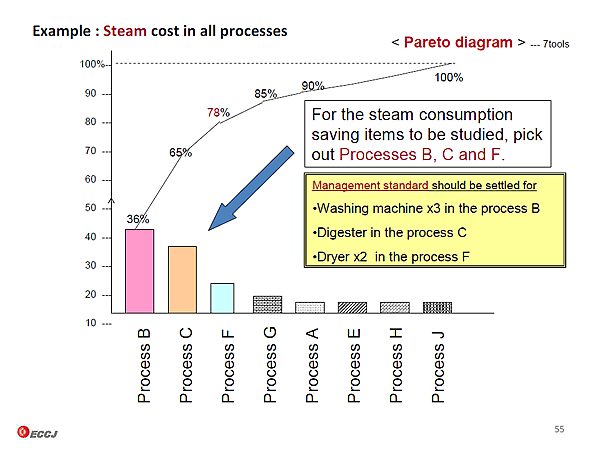

Example : Steam cost in all processes < Pareto diagram > --- 7tools

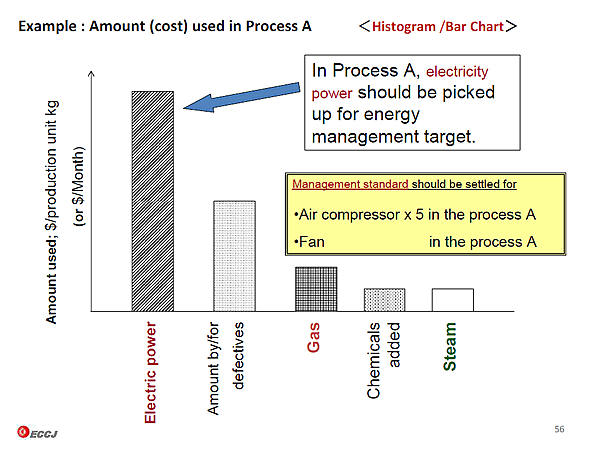

Example : Amount (cost) used in Process A <Histogram /Bar Chart>
14/17
