ECCJ / Text Thailand

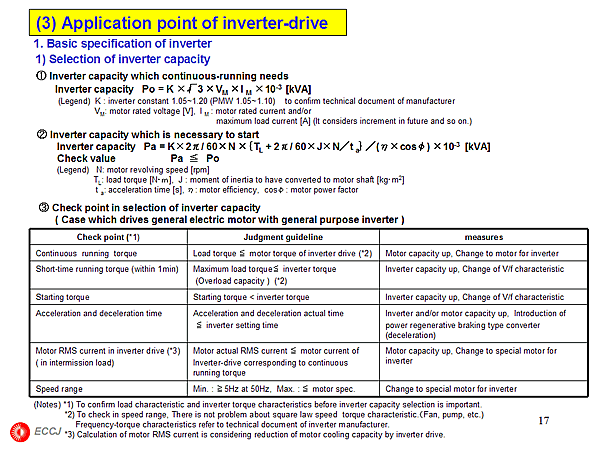

(3) Application point of inverter-drive

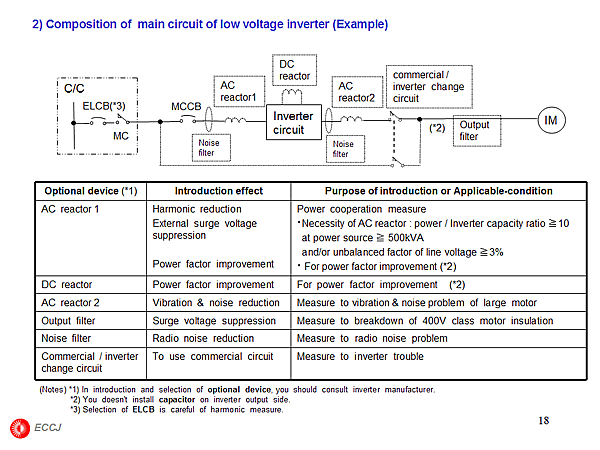

2) Composition of main circuit of low voltage inverter (Example)

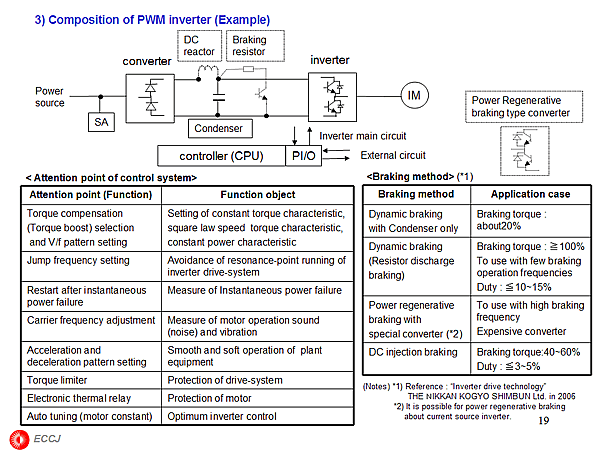

3) Composition of PWM inverter (Example)

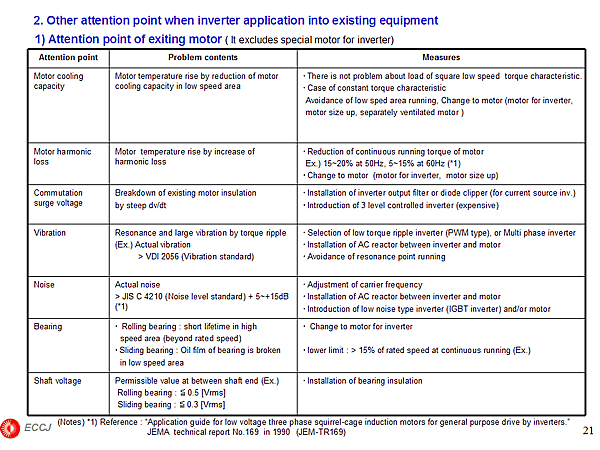

2. Other attention point when inverter application into existing equipment
5/25
