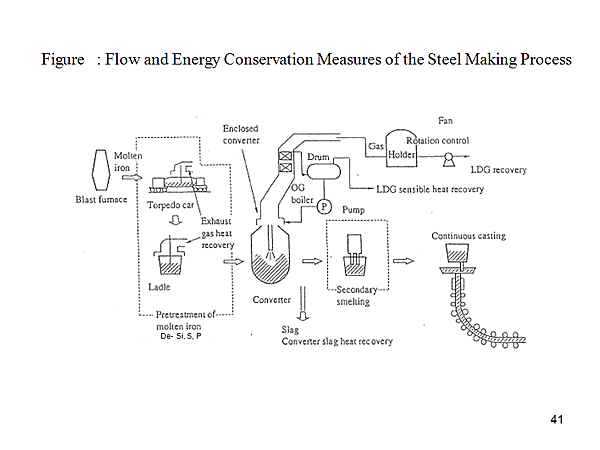

Figure : Flow and Energy Conservation Measures of the Steel Making Process

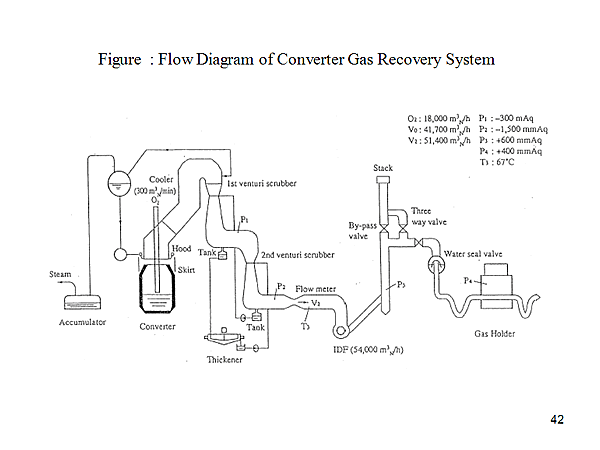

Figure : Flow Diagram of Converter Gas Recovery System

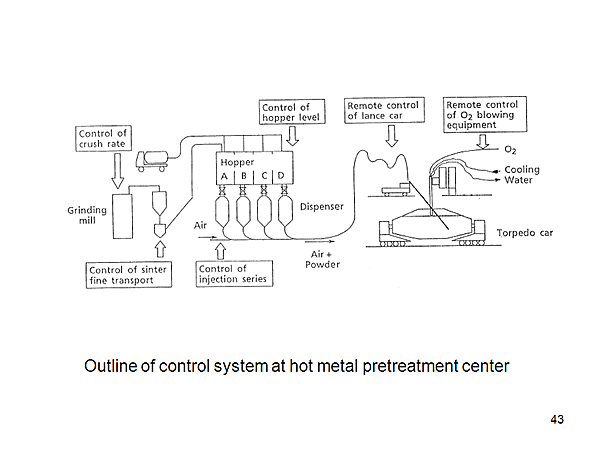

Outline of control system at hot metal pretreatment center

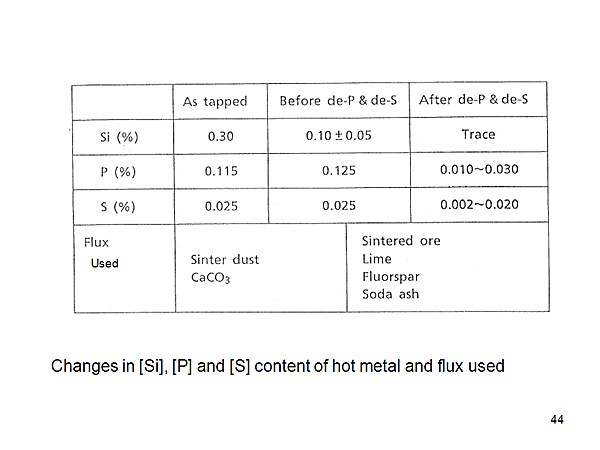

Changes in [Si], [P] and [S] content of hot metal and flux used
11/22
