ECCJ / Text Thailand

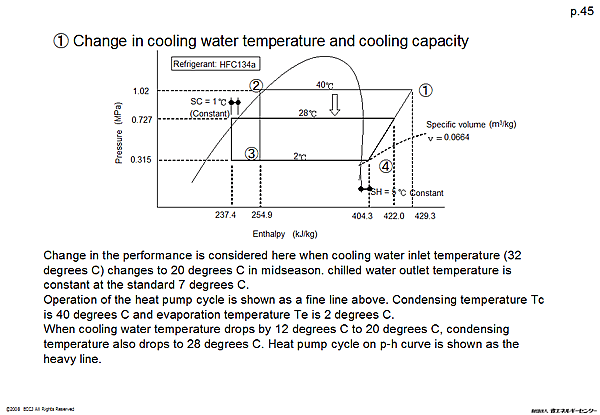

(1) Change in cooling water temperature and cooling capacity

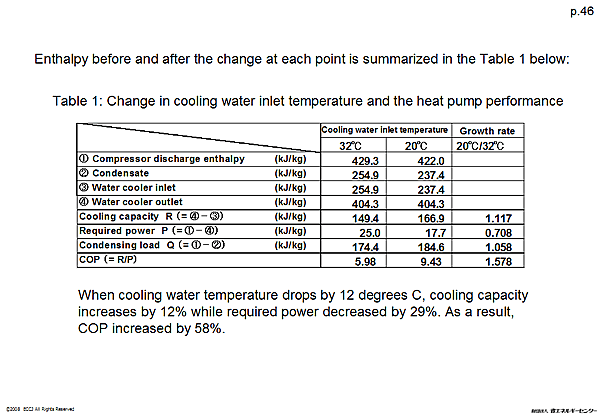

Enthalpy before and after the change at each point is summarized in the Table 1 below:

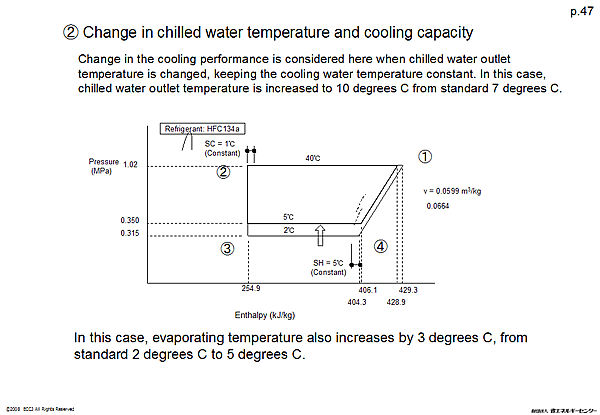

(2) Change in chilled water temperature and cooling capacity

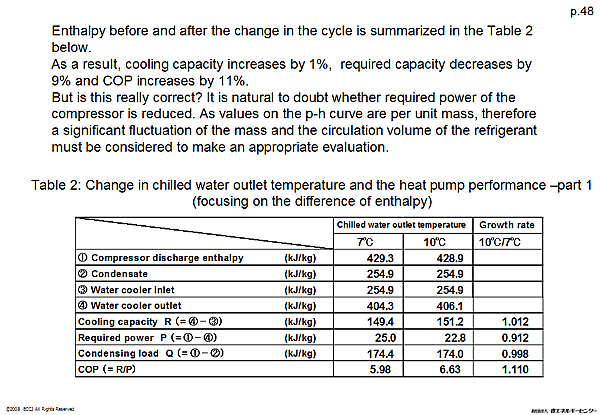

Enthalpy before and after the change in the cycle is summarized in the Table 2 below.
12/29
