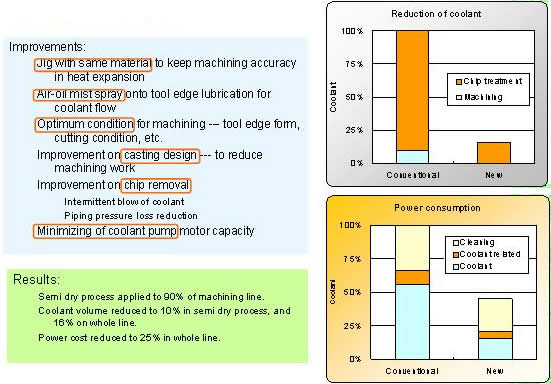

Example-1: Power Reduction by Process Modification

Factory:

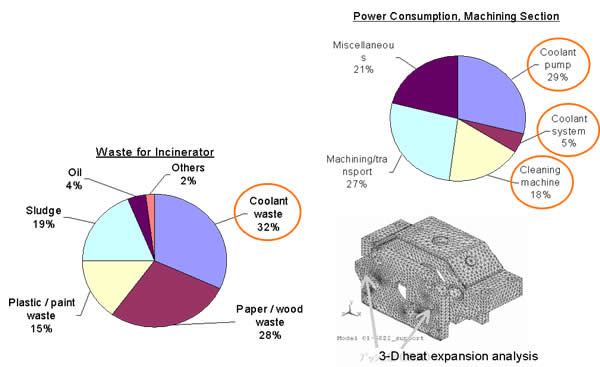

Machining line / Car manufacturingCoolant is used in machining to:reduce heat expansion of work,lubricate tool-edge,remove chips.

Example 1: continued

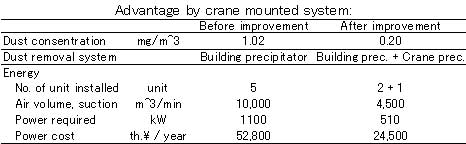

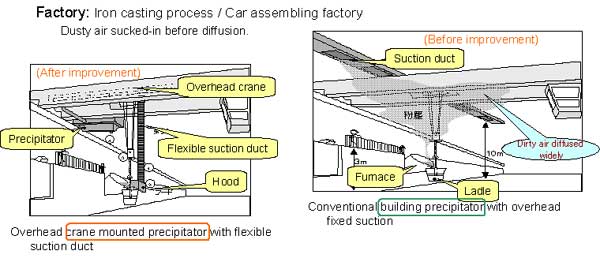

Example 2: Dust Removal System in Foundry

Power cost reduced with small amount of suction air.

Example 3: Manufacturing process improvement--- Eliminating heating process
Factory: Car parts --- alternator stator manufacturing process

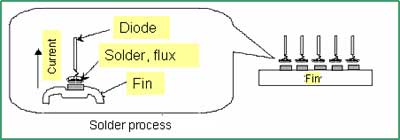

Before improvement Diode is soldered to the fin, therefore solder heating furnace is necessary.
After improvement Diode is attached by press-in process to the fin, and heating/cooling process is eliminated. Required technical development: To avoid the strain in diode. To secure the adhere to the fin.
