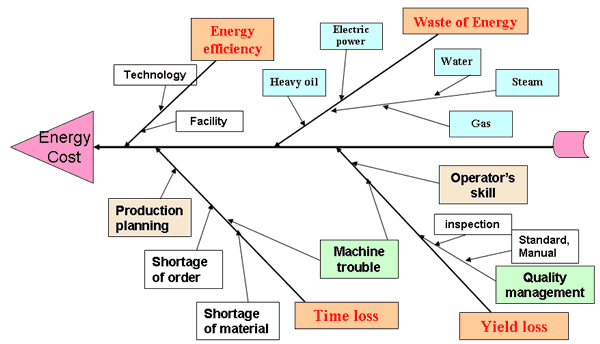

Example: Factor analysis for Energy Cost < cause and effect diagram > |
| View point of loss-structure |

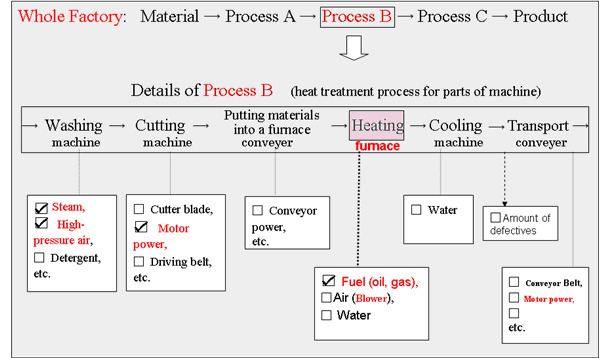

Example in a machine manufacturing factory : (Segmentation of Manufacturing Process) |
< Flow diagram > --- 7 tools
< Check sheet > ---7 tools
|

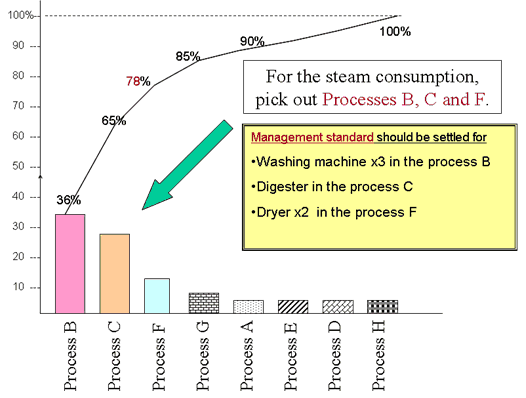

Example : Steam cost in all processes |
|
< Pareto diagram > --- 7tools
 |

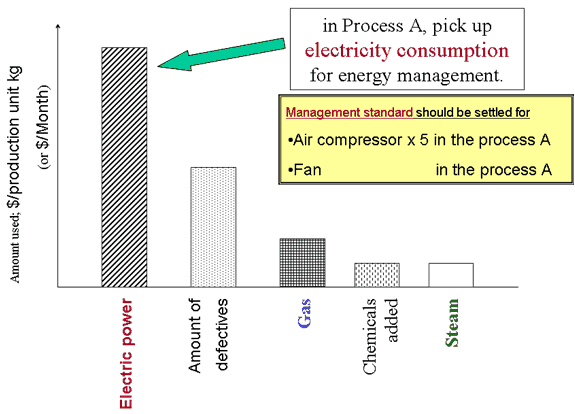

Example : Amount (cost) used in Process A |
 |
| 6/39 Next |
