Energy conservation of pumps and fans (Reference)
| AEEC Home | Training Index | Index | Top | Previous | Next |
| ECCJ / AOTS Malaysia training course | Malaysia |
|
2.3.9 Rationalization of conversion of electricity to Power/heat
|
(1) Management of electric power equipment, electric heating equipment, etc. 1) Stop electric power equipment considering the correlation with starting power so that electric loss due to dry run is reduced. 2) When multiple motors are used, maintain adequate demand ratio, adjust the number of motors that runs, and implement adequate distribution of load. 3) Regarding fluid machines, optimize discharging amount and pressure and reduce the load of motors by reviewing the end pressure and discharging pressure and by controlling the number of machines. 4) Regarding induction furnaces, etc., improve heat efficiency by correcting filling method, etc for things to be heated. 5) Regarding electrolysis facilities, improve electrolysis efficiency by adequately managing distance between electrodes, density of electrolysis liquid, etc. 6) Manage voltage, current, etc and reduce electric loss for each electric facility. |
|

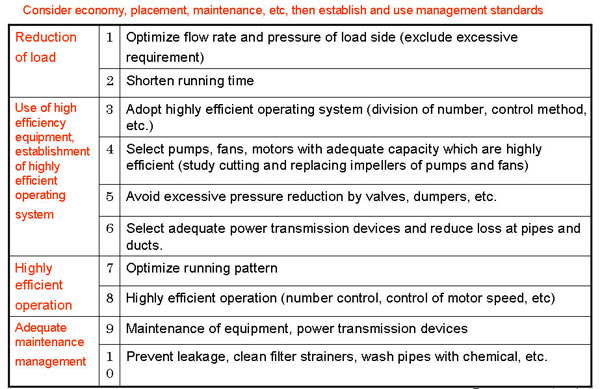

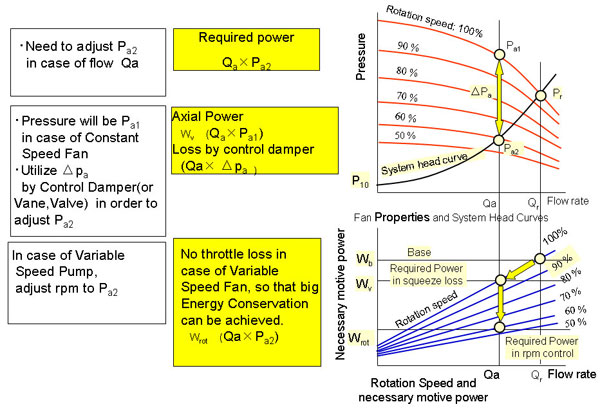

Energy conservation of pumps and fans (Reference)
|
|
|

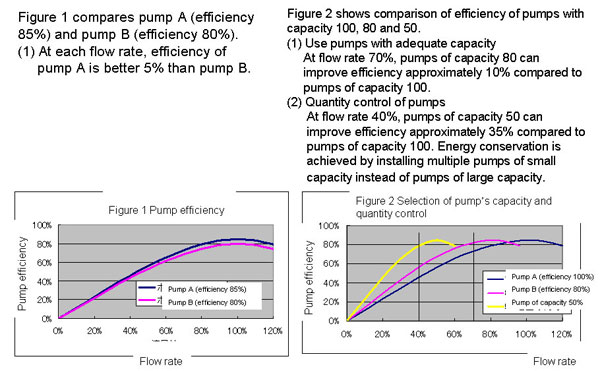

Efficiency of pumps, fans and selection of capacity (Reference)
|
 |
|

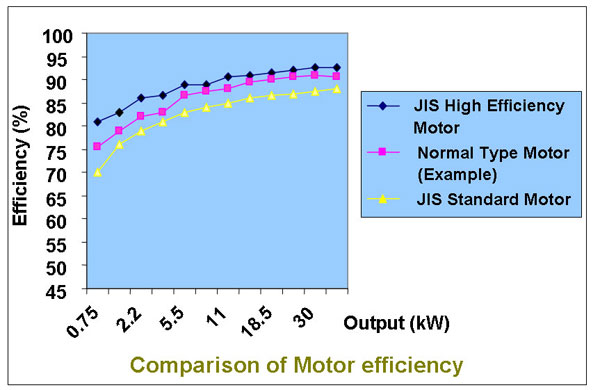

High Efficiency Motor (Reference)
|
 |
|
|
2.3.10 Lighting equipment, elevators, office equipment, consumer equipment, etc.
|
| (1) Management of lighting equipment, elevators, office
equipment,consumer equipment, etc. 1) Manage lighting equipment according to Japan Industrial Standards, etc. 2) Control the number of elevators that runs. 3) Cut power supply of office equipment when not used and set low power mode. |
| 5/8 Next |
