ECCJ / Text Thailand

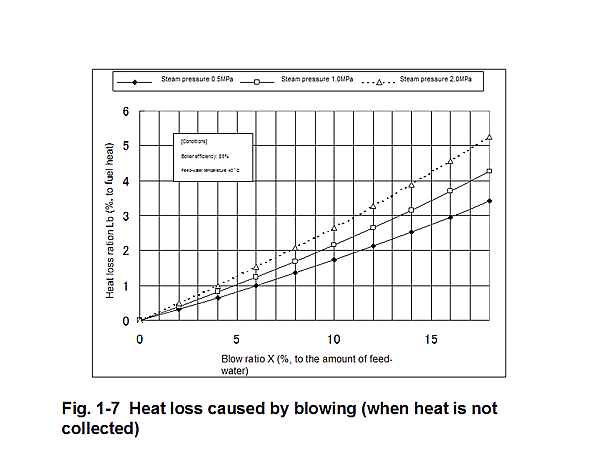

Fig. 1-7 Heat loss caused by blowing (when heat is not collected)

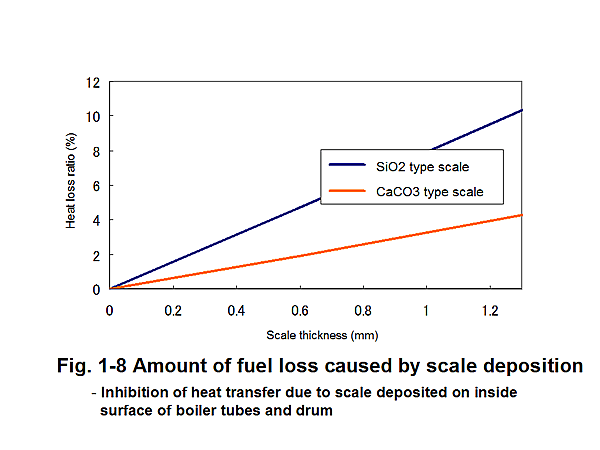

Fig. 1-8 Amount of fuel loss caused by scale deposition

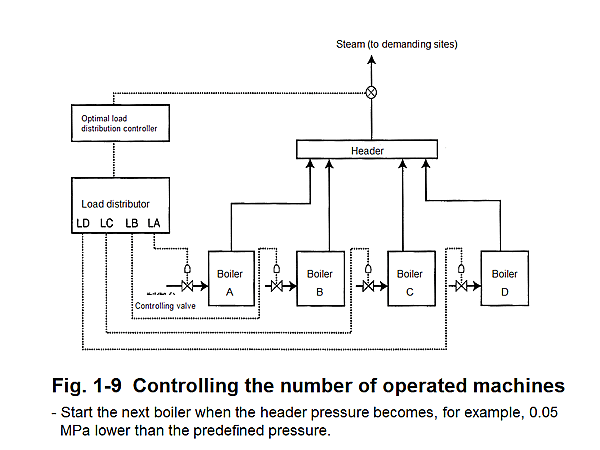

Fig. 1-9 Controlling the number of operated machines

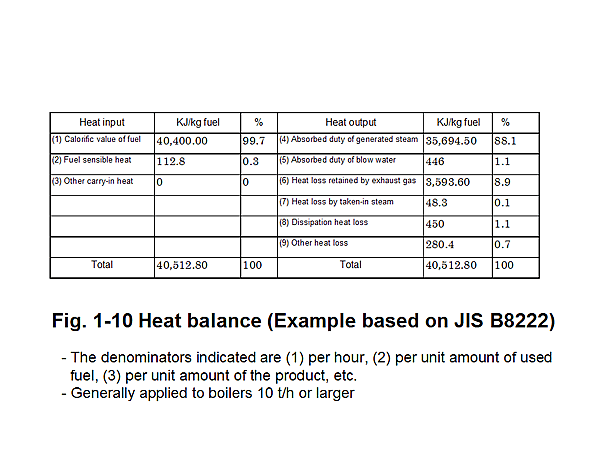

Fig. 1-10 Heat balance (Example based on JIS B8222)
3/5
