ECCJ / Text Thailand

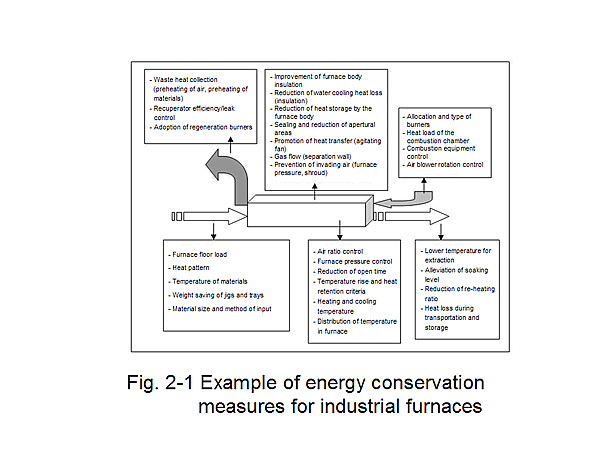

Fig. 2-1 Example of energy conservation measures for industrial furnaces

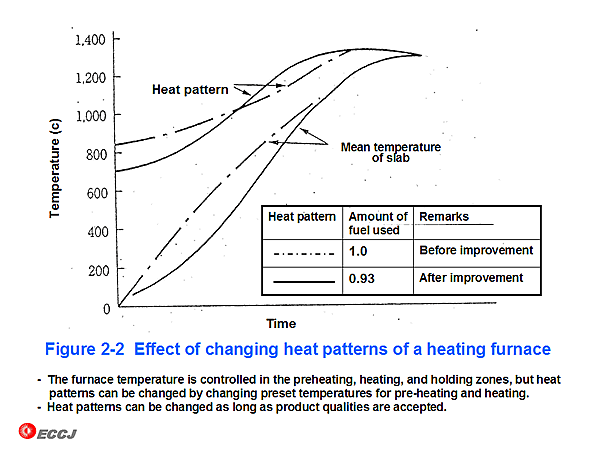

Figure 2-2 Effect of changing heat patterns of a heating furnace

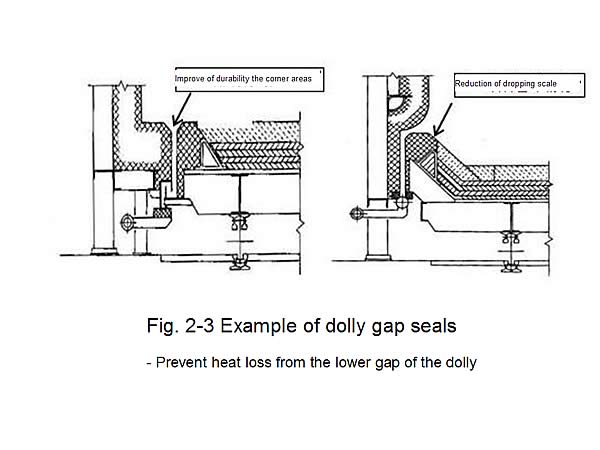

Fig. 2-3 Example of dolly gap seals

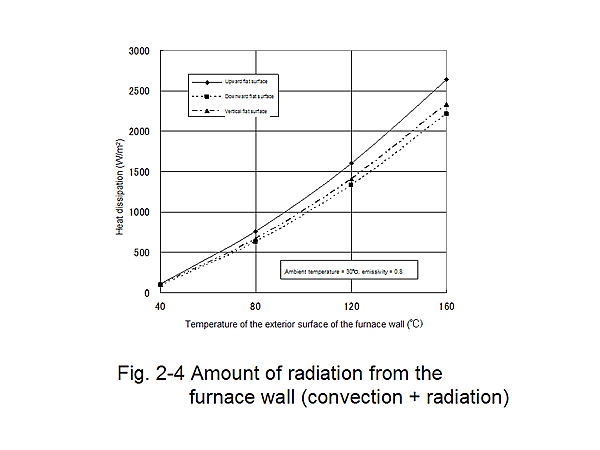

Fig. 2-4 Amount of radiation from the furnace wall (convection + radiation)
4/5
