ECCJ / Text Thailand

Tool to find out latent losses and operation rules

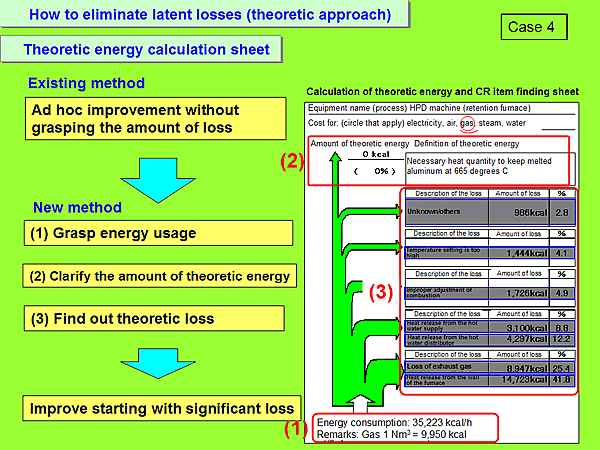

How to eliminate latent losses (theoretic approach)

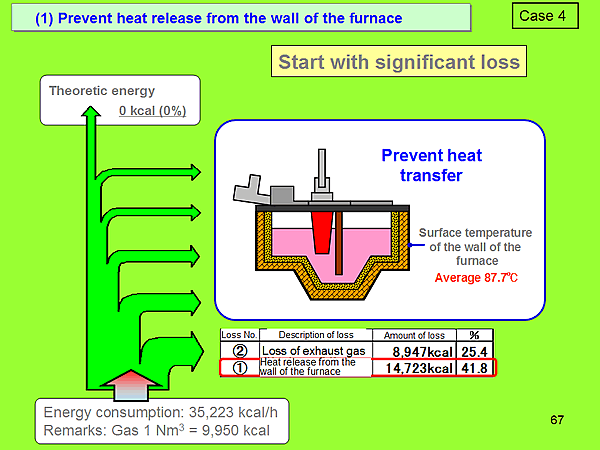

(1) Prevent heat release from the wall of the furnace
Energy Conservation Measures of the Compressor / Case5

  1. Establish a system for energy-saving operation
    • - Operate with the best efficiency even when consumption of air fluctuates
      - Independent operation of the equipment
      - Unit control
      - Inverter control for 1 unit + unit control
  2. Actions to improve energy unit consumption
    • - Effective use of air, lower air pressure
  3. Implement measures to prevent leakage from pipes
17/22
