ECCJ / Text India

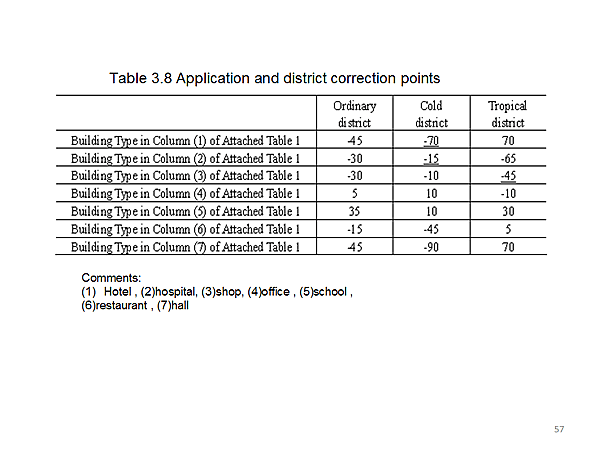

Table 3.8 Application and district correction points

<2> Standards of specifications of air conditioning facilities

  • Buildings having a total floor area of 2,000-5,000 m2
  • This can be applied only to package air conditioners (limited to the air-cooling type) defined as air conditioning equipment (package air conditioners) and gas engine-driven heat pump air conditioners defined as gas engine-driven heat pump air conditioners installed in buildings having having a total floor area of 5,000 square meters or less.
    Evaluation items are shown in (1) to (3) below, whose total is required to be 100 or more as the judgement criteria.

    (1) Reduction of outside air load (total heat exchanger, stopping intake of outside
       air in preheating stage) (Table 3.9)
    (2) The installation location of an outdoor unit and the length of the pipe (Table3.10)
    (3) The efficiency of heat source equipment (outdoor unit) (Table 3.11)

             Point = Correction points + ((1) + (2) + (3))

    Correction point: Correction points for building type and regional classification
    (See Table 3.12.)

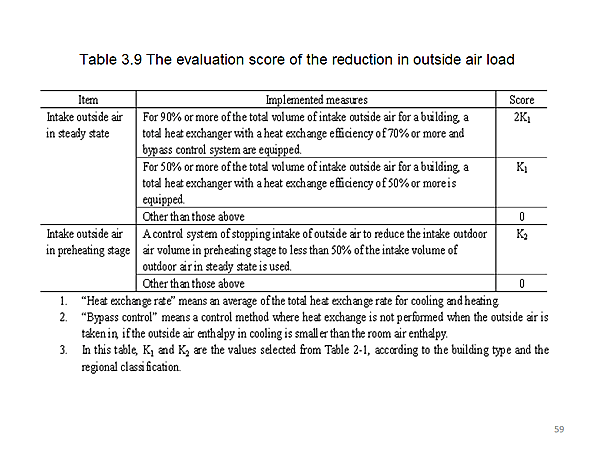

Table 3.9 The evaluation score of the reduction in outside air load

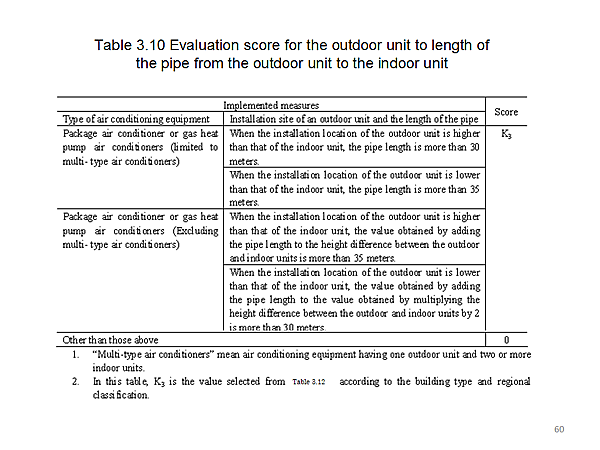

Table 3.10 Evaluation score for the outdoor unit to length of the pipe from the outdoor unit to the indoor unit

15/22
