ECCJ / Text India

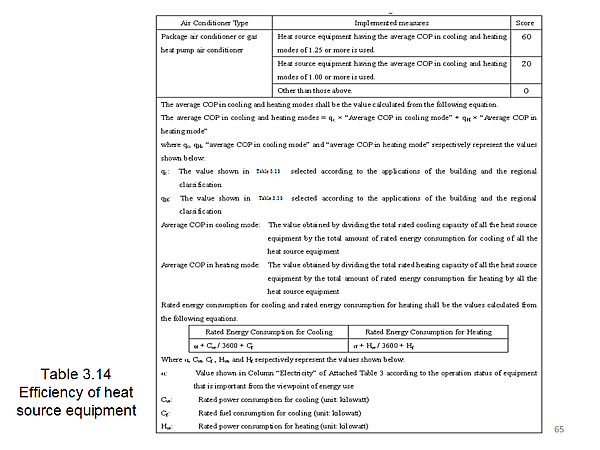

Table 3.14 Efficiency of heat source equipment

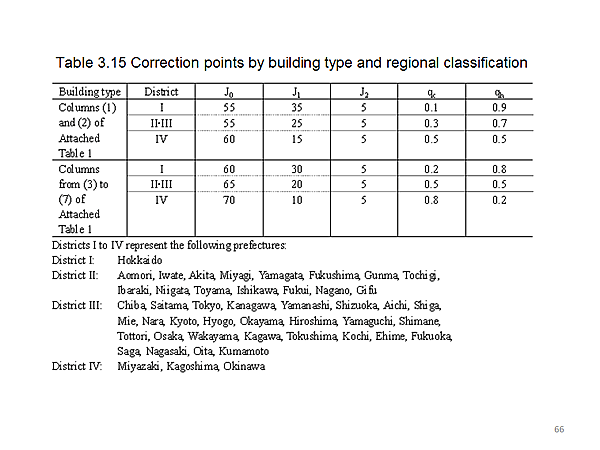

Table 3.15 Correction points by building type and regional classification

<3> Standards of specifications of air ventilation equipment

  • Buildings having a total floor area of 2,000-5,000 m2
  • For the mechanical ventilation equipment installed in buildings having a total floor area of 5,000 square meters or less that is important from the viewpoint of energy use and installed in non-air conditioned rooms, the score, which is calculated by adding 80 to the total scores selected based on the measures listed for each item in the table below, shall be 100 or more.

    (1) Scores related to the control system (Table 3.16)
    (2) Scores related to the adoption of high-efficiency induction motor (Table 3.16)
    (3) Scores related to natural ventilation method for car parking are etc. (Table 3.16)

              Point = 80 + ((1) + (2) + (3))

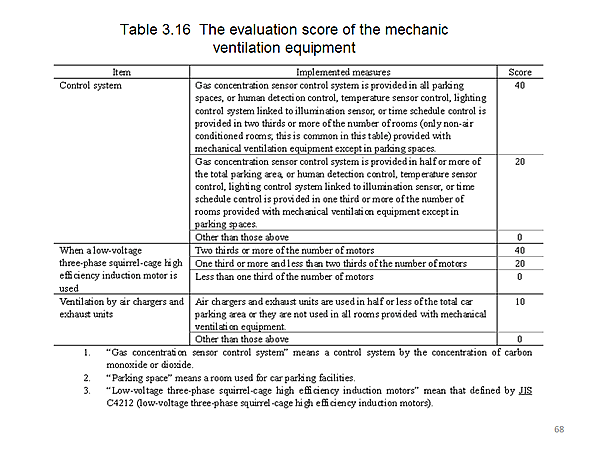

Table 3.16 The evaluation score of the mechanic ventilation equipment

17/22
