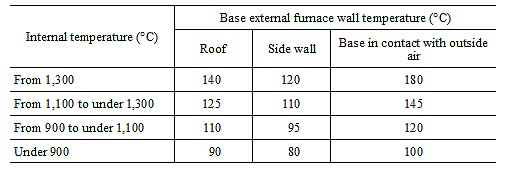

Attachment Table 3 (A) Base external furnace wall temperature (I 5-1 (1) 2))
Attachment Table 3 (A)Base external furnace wall temperature (I 5-1 (1) 2))
  • Notes:
    1. Values for base external furnace wall temperature given in the table are for the mean temperature on the external wall (excluding specific parts) of a furnace at routine operation at an outside air temperature of 20°C.
    2. Values for base external furnace wall temperature given in the table shall not apply to the external furnace wall temperatures of the following industrial furnaces.
      • (1)Furnaces with a rated capacity (burner fuel combustion performance) of under 20 L per hour (crude oil equivalent).
      • (2)Furnaces forcibly cooled.
      • (3)Rotary kilns.
      • (4)Furnaces used for development, research or trial production.

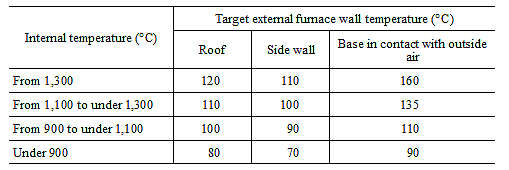

Attachment Table 3 (B) Target external furnace wall temperatures (II 1 (2) 14))
Attachment Table 3 (B)Target external furnace wall temperatures (II 1 (2) 14))
  • Notes:
    1. Values for target external furnace wall temperature given in the table are for the mean temperature on the external wall (excluding specific parts) of a furnace during routine operation at an outside air temperature of 20°C.
    2. Values for target external furnace wall temperature shall not apply to the furnace wall temperatures of the following furnaces; provided, however, that consideration shall be given to increasing the insulation efficiency of the furnace wall based on the table where possible.
      • (1) Furnaces with a rated capacity (burner fuel combustion performance) of under 20 L per hour (crude oil equivalent)
      • (2) Furnaces forcibly cooled
      • (3) Rotary kilns
      • (4) Furnaces used for development, research or trial production.
