ECCJ / Text / Thailand / Appendix 3-1 / Standards for Judgment by Enterprises for Streamlining of Energy Use at Plants and Implementation Businesses

ECCJ / Text

Thailand

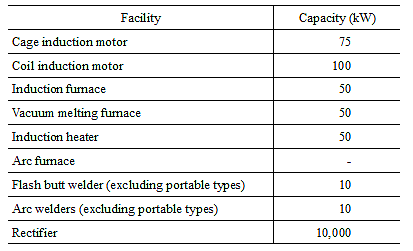

Attachment Table 4 Facilities to increase power factor (I 5-2 (1) 3) and II 1 (5) 4))

Note: Facilities that are difficult to install for safety reasons, such as explosion-proof types, are excluded.

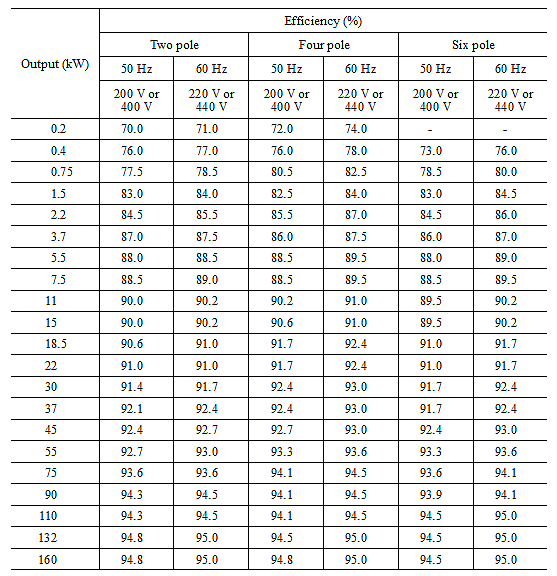

Attachment Table 5 (A) Target efficiency for high-efficiency totally enclosed electric motors (0.2-160 kW) (II 1 (5) 1))

Note:
Efficiency is measured by the method stipulated in 7.3 Efficiency test of JIS C 4212 (High-efficiency low-voltage three-phase basket induction motors). To this efficiency is applied 4.2 Efficiency tolerance.
