ECCJ / TextReport Vietnam

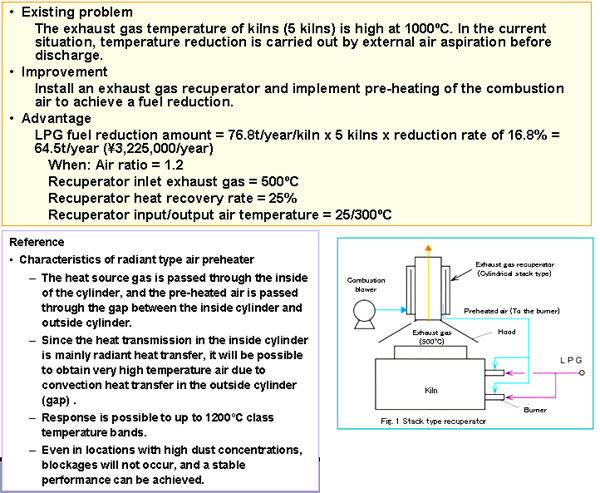

2.3-3 Waste Heat Recovery by Recuperators
2-2. The “air ratio” is calculated from the O2% of the exhaust gas.

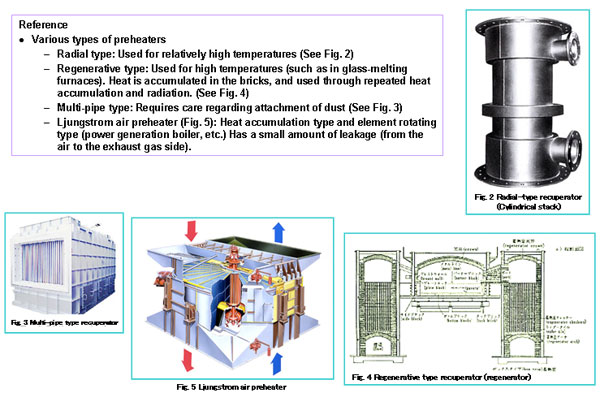

2.3-4 Air Preheating with Exhaust Gas
2.3-4 Air Preheating with Exhaust Gas

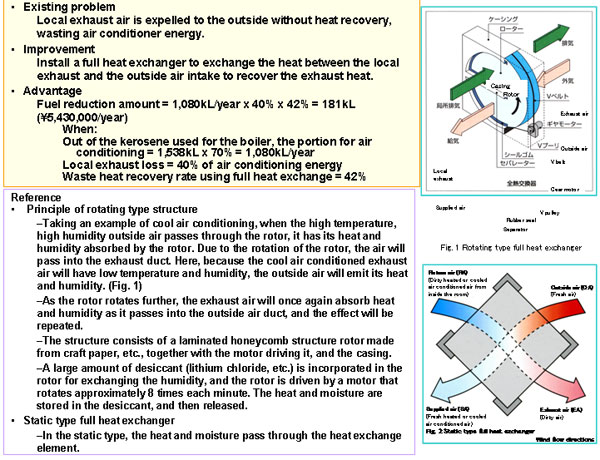

2.3-5 Heat Recovery with Air-to-air Heat Exchangers
2.3-5 Heat Recovery with Air-to-air Heat Exchangers

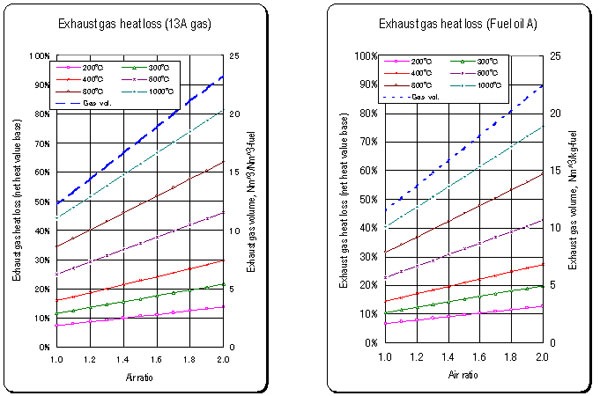

2.3-6 Larger air ratio leads to larger heat loss
with the exhaust gas
2.3-6 Larger air ratio leads to larger heat losswith the exhaust gas

6/13
