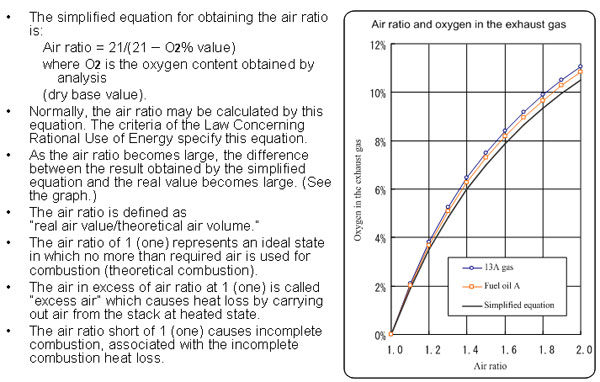

2-2. The “air ratio” is calculated from
the O2% of the exhaust gas.
the O2% of the exhaust gas.
| AEEC Home | Training Index | Index | Top | Previous | Next |
| ECCJ / TextReport | Vietnam |
2-2. The “air ratio” is calculated from the O2% of the exhaust gas. |
|
2-3. Larger air ratio leads to larger heat loss with the exhaust gas. |
|
2-3-2 Heat Insulation Reinforcement 2-3-3 Waste Heat Recovery by Recuperators 2-3-4 Air Preheating with Exhaust Gas 2-3-5 Heat Recovery with Air-to-air Heat Exchangers 2-3-6 Larger air ratio leads to larger heat loss with the exhaust gas |

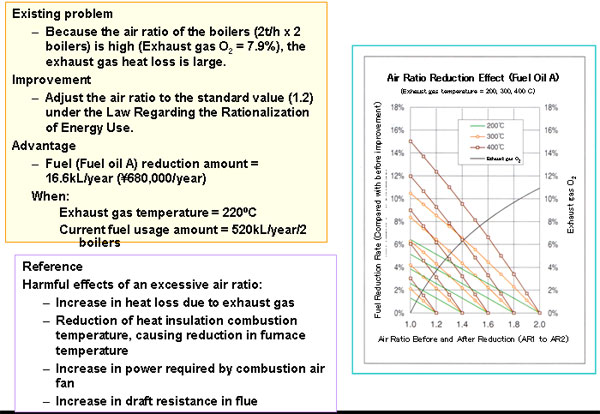

2.3-1 Air Ratio Adjustment of Boilers |
 |

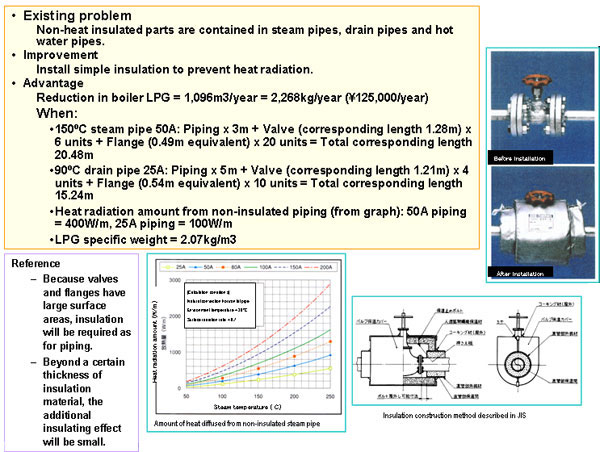

2.3-2 Heat Insulation Reinforcement |
 |
| 5/13 Next |
